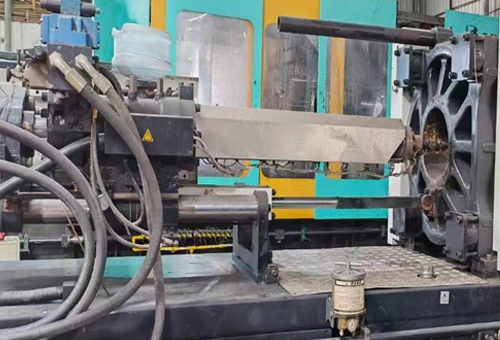

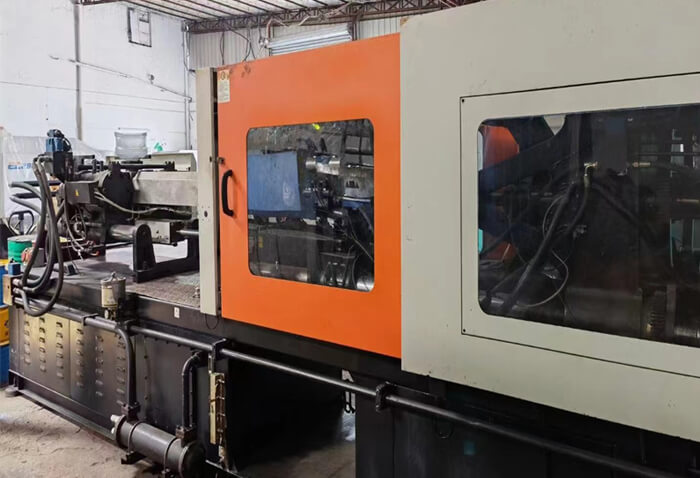

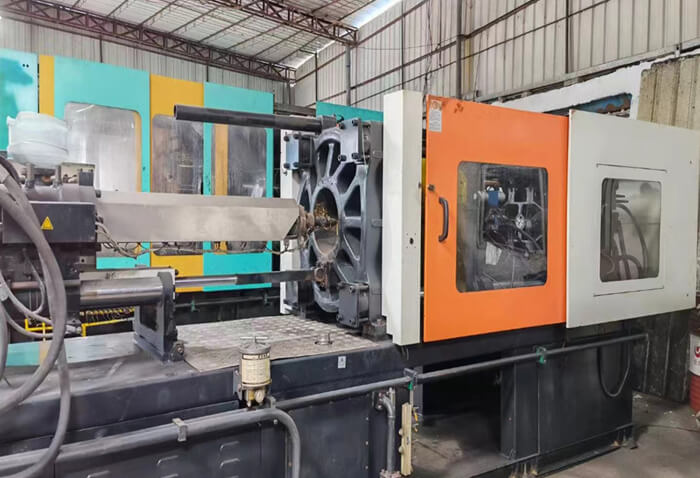

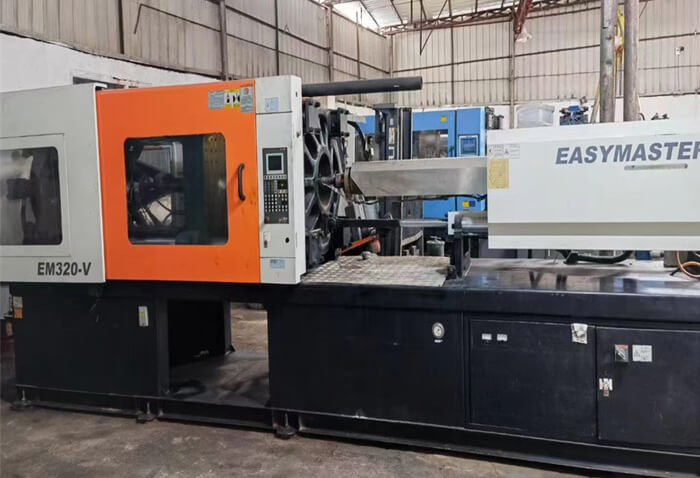

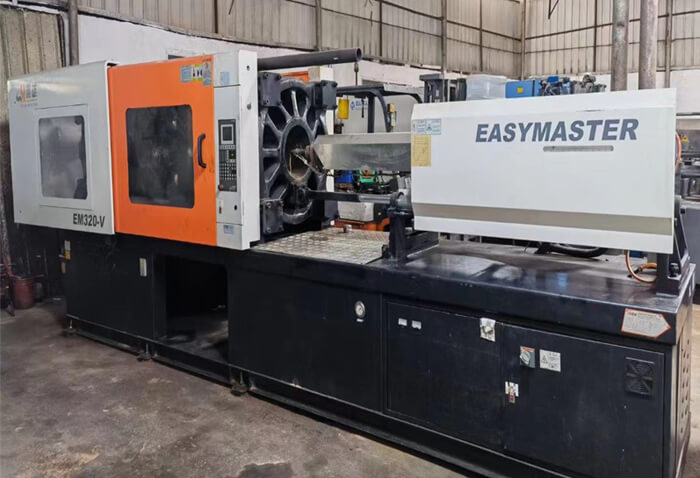

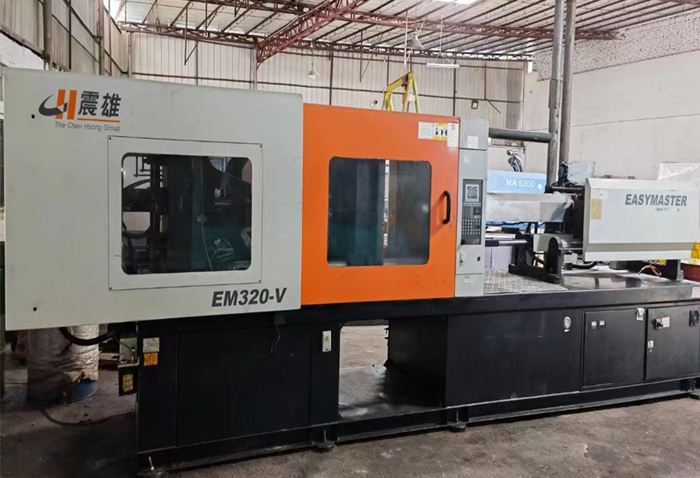

EM320-V
Silicone Clamping Unit Pvc Pipe Chennsong 320 Ton Machine Plastic Injection Blow Moulding Machine
Brand:
ChenHsong
Appearance:
Horizontal
Model Number:
320T
Stock:
≥1
Price：
$13,632.00
Product Details Display
Silicone Clamping Unit Pvc Pipe Chennsong 320 Ton Machine Plastic Injection Blow Moulding Machine
Equipment Parameters
Silicone Clamping Unit Pvc Pipe Chennsong 320 Ton Machine Plastic Injection Blow Moulding Machine
| Parameters | BST-3000 | BST-3400 | BST-3850 | |
| Screw diameter | mm | 56 | 58 | 65 |
| Theoretical Shot weight | CM3 | 788 | 858 | 1192 |
| Shot weight | gram | 709 | 772 | 1072 |
| Clamping force | KN | 3000 | 3400 | 3850 |
| Toggle stroke | mm | 560 | 580 | 660 |
| Ejector stroke | mm | 160 | 160 | 160 |
| Space between tie bars | mm | 580*580 | 640*640 | 680*680 |
| Mould thickness | mm | 220-600 | 270-650 | 280-680 |
| Machine size | m | 6.5*1.8*1.8 | 6.7*2.0*1.9 | 7.0*2.2*2.0 |
| Machine weight | ton | 9 ton | 10.8 ton | 11.5 ton |
| Injection Molding Machine Standard Feature |

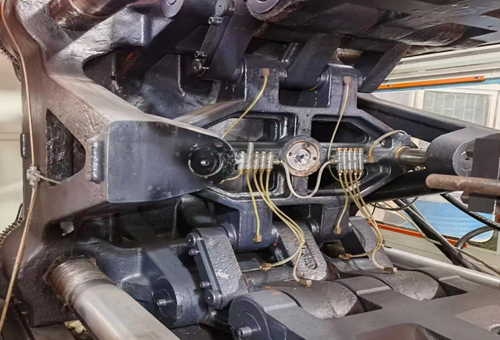

| CLAMPING UNIT |
| 1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock 2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping 3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability 4. Wear-resistant guide for moving platen 5. Transducer control clamping stroke 6. Many step controls for speed and pressure of clamping and opening 7. Ejection device offer dwell, single, more, vibration function 8. Differential high-speed clamping 9. Low pressure mold protection function 10. Hydraulic mold height adjustment derived by gear with rough and fine operation 11. Mechanical and electrical dual safety interlock 12. Automatic centralized lubrication system with far pressure detector |

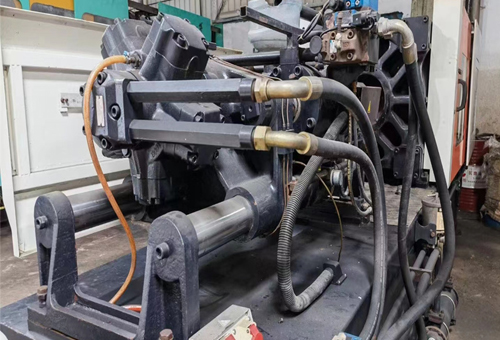

| HYDRAULIC UNIT |
| 1. Proportional pressure and flow control with the advantage of fine adjustment and high precision 2. Know-how manifold design, compact, reasonable and fast respond 3. Imported world famous hydraulic valves 4. Imported world famous hydraulic sealing rings 5. Import technology hydraulic hose and fittings 6. Low noise hydraulic system 7. Oil tank with inner stainless-steel container 8. Precision oil filter 9. Oil cooler |
| CONTROL UNIT |
| 1.The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to display 2. World famous electrical components 3. Close-loop PID temperature control with the advantage of high precision. 4. Deviation preset between high and low temperature. And break control for temperature sensor. 5. Alarming system in case of cold start and no material in hopper 6. Transducer control the injection and opening stroke to accuracy of ±0.05mm 7. 99 steps speed control for increasing and reducing to suit for different technology demands 8. Self-diagnostic and trouble alarm function 9. Parameters lock function to avoid being changed 10. 100 sets of production parameters can be stored into the computer memorial software 11. Machine can record the quantity of products and automatically stop if up to the required quantity. 12. Emergency stop device 13. Alarm lamp |
Tags:
Do You Need Help Buying The Right Machine?
Let Our Experienced Sales Team Assist You. Fill Out The Contact Form With Some Of Your
Specifications And We Will Ensure A Member Of The Team Gets Back To You As Soon As Possible
To Discuss Your Requirements.
Let Our Experienced Sales Team Assist You. Fill Out The Contact Form With Some Of Your Specifications And We Will Ensure A Member Of The Team Gets Back To You As Soon As Possible To Discuss Your Requirements.
Let Our Experienced Sales Team Assist You. Fill Out The Contact Form With Some Of Your Specifications And We Will Ensure A Member Of The Team Gets Back To You As Soon As Possible To Discuss Your Requirements.
Fill In The Details Below And We Will Help You Find The Right Machine
FAQ From Customers
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
